JEEKI Dishwasher Customized Solution
1.6 Meter Fully Automatic Utensil Washing, Rinsing, and Disinfection Integrated Machine
(Dedicated conveyor belt mesh, no racks loading required, suitable for cleaning plates and dishes in hotels and schools)
(1) 1 Set Main Wash + (1 Set Rinse + 1 Set Disinfection) (Reference Image)
Dishwasher Technical Parameters:
Items | Parameter | Items | Parameter |
Model | JK-S160A | Heating Method | Electric/Steam Heating |
Specifications | 1686*740*1365MM | Max. Cleaning Height | 210mm |
Wash Pump Power | 1.5KW | Max. Cleaning Width | 535mm |
Conveyor Motor Power | 0.2KW | Tank Heating Power | 10KW |
Water Consumption | 260L | Rinse & Heating Power | 18KW |
Processing Capacity | 1500-3000 pieces/H | Processing Method | Top/Bottom High-Pressure Spray |
Washing Method | Flat Placement | Total Power | 30KW |
Washable Materials | Ceramic/Stainless Steel/Melamine/Imitation Porcelain, etc. |
|
|
If using steam heating, a steam source or steam boiler/natural gas boiler must be provide

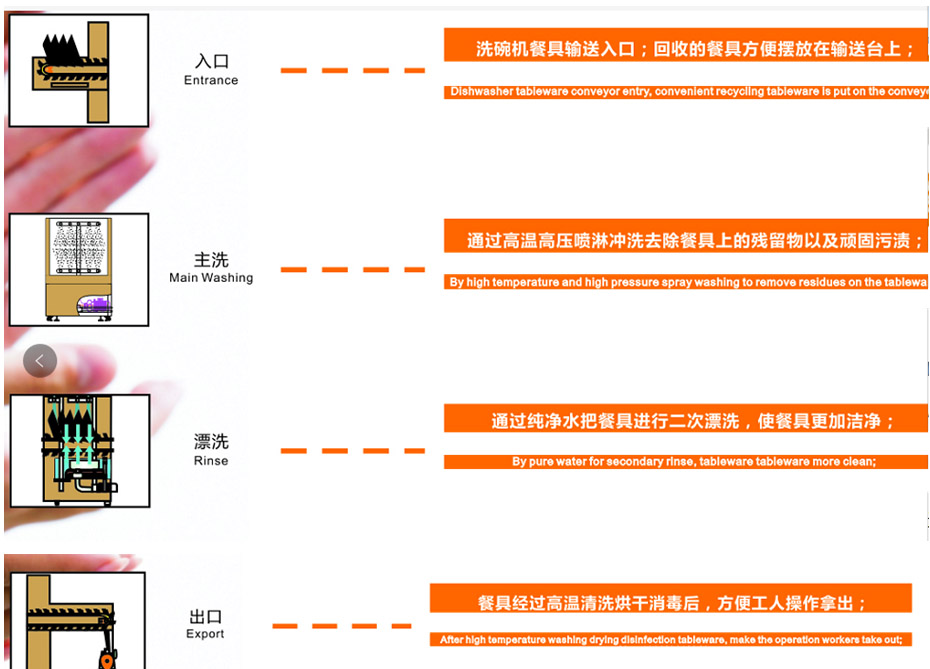

Image Operation Process
Workers place tableware onto the washer; the tableware is automatically washed, spray rinsed, rinsed, and conveyed out.
Dishwasher Energy Consumption Table:
Category / H | Parameter |
Power Consumption (Electric Heating) | 30KW |
Water Consumption | 260L |
Cleaning Capacity | 1500-3000 pieces |
Dishwasher Alkali Solution (20L) | 0.4-0.6L/H |
Rinse Aid (20L) | 0.5L/H |
Staffing Required | 1-2 people |
Total Equipment Length: 1686MM (Maximum outer dimension length including outlet)
Dimensions are as follows:
External Dimensions (L×W×H): 1686 mm × 740 mm × 1365 mm;
Installation Connection Requirements:
Rated Power Consumption: Three-Phase Five-Wire System (One Earth Wire)
Main Unit Power Cable Diameter: 25mm²
Water Inlet Pipe Diameter: φ20mm
Drain Pipe Diameter: φ50mm
Water Inlet Pressure (Flow Pressure): 0.3-5 kg/cm²
Water Inlet Temperature: 10-60℃
Water Inlet Hardness: 0.034-0.103 g/L
Steam Inlet Pipe Diameter: φ20mm
Steam Outlet Pipe Diameter: φ20mm
Steam Consumption: 45 kg
Steam Inlet Pressure: 0.2-0.35 kg/cm²; Steam Consumption: 50 kg/H
Steam Inlet Pressure: 0.2-0.35 MPa
