This hood type dishwasher incorporates the currently popular rotating wash arm and rinse arm design, ensuring top-tier cleaning performance. It is specifically designed for various catering establishments such as hotels, restaurants, and canteens. It efficiently cleans various tableware including plates, dishes, bowls, glasses, and cutlery, meeting high standards of hygienic washing.
Hood Type Dishwasher JK-T680M1
Brand | JEEKI |
Name | Hood Type Dishwasher |
Model | JK-T680M1 |
Origin | China |
Product Dimensions | 620*740*1420mm | Water Inlet Pressure | 0.1-0.45MPa |
Dimensions (with handle) | 720*830*1820H | Wash Temperature | 50-60℃ |
Washing Capacity | 40-60 Racks/H | Rinse Temperature | 80-85℃ |
Max. Washing Height | 400mm | Basket Size | 500*500mm |
Heating System Power | 12kW | Water Inlet Pipe Dia. | 20mm |
Conveyor Function Power | backslash | Water Inlet Temp. | 10-60℃ |
Number of Water Pumps | 1 | Water Hardness | 0.034-0.103g/L |
Water Pump Power | 1.5kW | Tank Material | 304 Stainless Steel, One-piece Stretched |
RatedPower consumption | (3-Phase 5-Wire System): 380V |
| |
This hood type dishwasher incorporates the currently popular rotating wash arm and rinse arm design, ensuring top-tier cleaning performance. It is specifically designed for various catering establishments such as hotels, restaurants, and canteens. It efficiently cleans various tableware including plates, dishes, bowls, glasses, and cutlery, meeting high standards of hygienic washing.
Product Features:
Excellent Cleaning Performance: Advanced rotating wash and rinse arms ensure powerful spray cleaning from all angles, eliminating dead zones and guaranteeing first-class washing quality.
Convenient & Comfortable Operation: Equipped with a microchip program control system and a user-friendly operation panel for simple operation and a comfortable experience. The stainless steel hood with straight handle lever allows for easy, energy-efficient operation. The rear-open hood design allows steam to escape from the back, enhancing operator comfort. A net clearance height of 390-410mm facilitates washing large plates and bowls.
Durable & Easy Maintenance: The one-piece stretched stainless steel wash tank is aesthetically pleasing, corrosion-resistant, and easy to clean. The machine features a self-cleaning function for maximum hygiene. The overall structure is simple, robust, reliable, easy to maintain, and has a long service life.
Flexible Wash Time Selection: The microcomputer control system offers three wash time settings (60 sec, 90 sec, 120 sec). Users can select the appropriate time based on the dirt level of the tableware for optimal results and simpler operation.
Hood type Dishwasher JK-T680M1
Main Structure & Working Principle
The machine primarily consists of the frame, wash system, rinse system, and electrical control system.
Wash System: Includes the stainless steel water pump, wash tank, and wash arms. The pump draws and pressurizes water from the tank, spraying it onto the tableware through the rotating wash arms from various angles.
Rinse System: Comprises the rinse arm and rinse water heater. The rinse arm sprays high-temperature fresh water to rinse off any detergent residue.
Electrical Control System: Utilizes microchip program control to precisely manage water inlet, heating, washing, and rinsing cycles. Human-machine interaction is achieved through the operation panel.

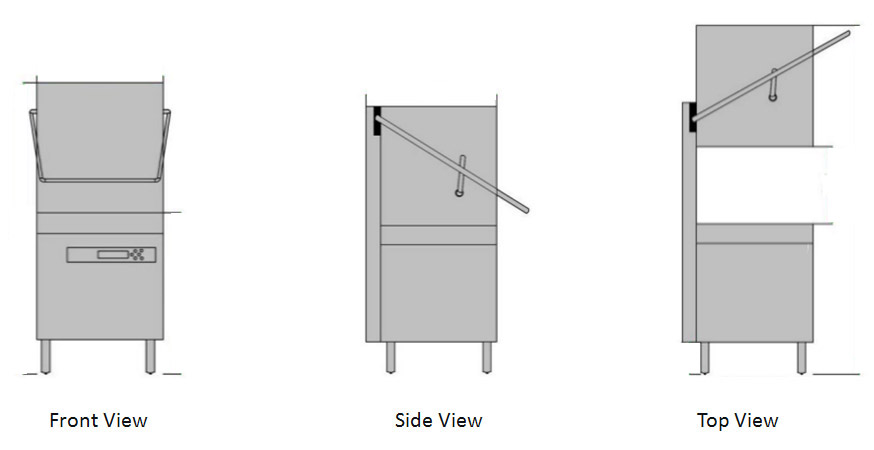

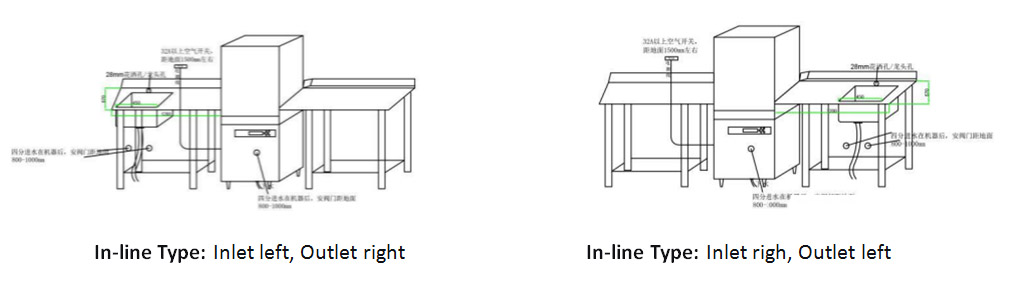

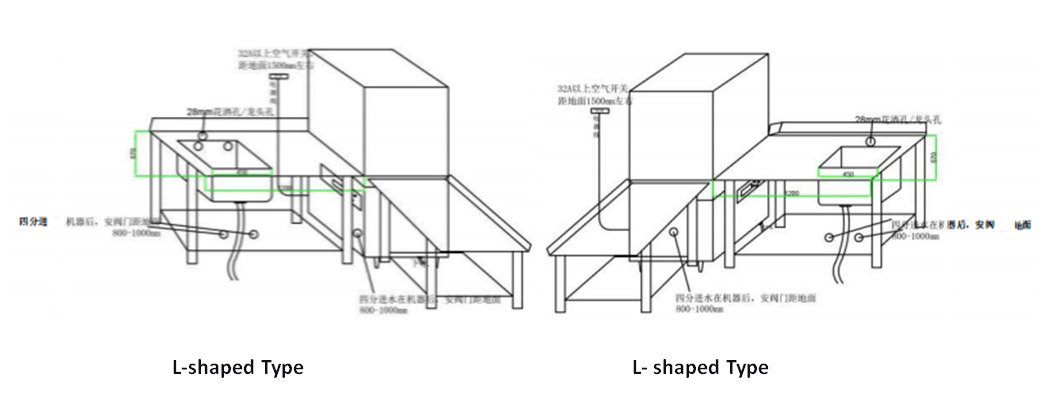

Three-View Drawings & Workstation Layout
Note: On-site installation must be performed by a certified electrician.
