Rack Type Dishwasher

Unit Type

Conveyor Type Washing, Rinsing, and Disinfection    Machine

Unit Dimensions

1200*850*1630    mm (Soiled/clean table dimensions often customizable on-site)

Voltage

380V, 3-Phase, 5-Wire

Power

Pure Electric 48KW (Rated Power)

Material

304 Stainless Steel (1.2mm - 3.0mm thickness)

Water Inlet Pipe Dia.

Diameter 20mm

Drain Pipe Dia.

Diameter 50mm

Washing Capacity

200 Racks/Hour (6-inch: 5000 pieces)  10-inch: (3600 pieces)

Vertical Spray Water Consumption

400L/H

Heating Method

Electric Heating (Can be modified for steam    heating)

Main Wash Temperature

40°C - 60°C

Rinse Temperature

85°C - 110°C

Wash Tank Capacity

68L

Vertical Spray Heating Element

27KW

Conveyor Power

0.2KW

Conveyor Speed

1-3 m/min

Inlet/Outlet Dimensions

Inlet (Soiled CutleryTable): 1050mm / Outlet (Clean    Cutlery Table): 830mm (Customizable on-site)

Cable Specification

National Standard 35mm² Copper Core Cable (3-Phase,    5-Wire)

Water Inlet Pressure

1.055 Kg/m³ - 1.76 Kg/m³ (Pressure reducing valve    required if pressure exceeding upper limit)

High-Quality Stainless Steel Construction

Body made of premium 304 stainless steel, with    maximum thickness up to 3mm, enhancing corrosion resistance, wear resistance,    and extending machine lifespan.

Simple & Precise Control System

Easy operation, precise temperature display at a    glance.

Thermal Protection

All motors in the machine are equipped with thermal    protection systems, extending motor service life.

Safety Protection Devices

1. Automatic protection triggered if inspection    port is lifted or tableware isn't removed promptly. 2. Automatic sensing    protection during no-load operation. 3. Shutdown delay protection prevents    shortening component lifespan due to sudden stops. 4. Heating element dry-burning    protection extends heating element life.

Large Capacity & High Efficiency

Spacious interior, works with dish racks to improve    washing efficiency and facilitate loading/unloading.

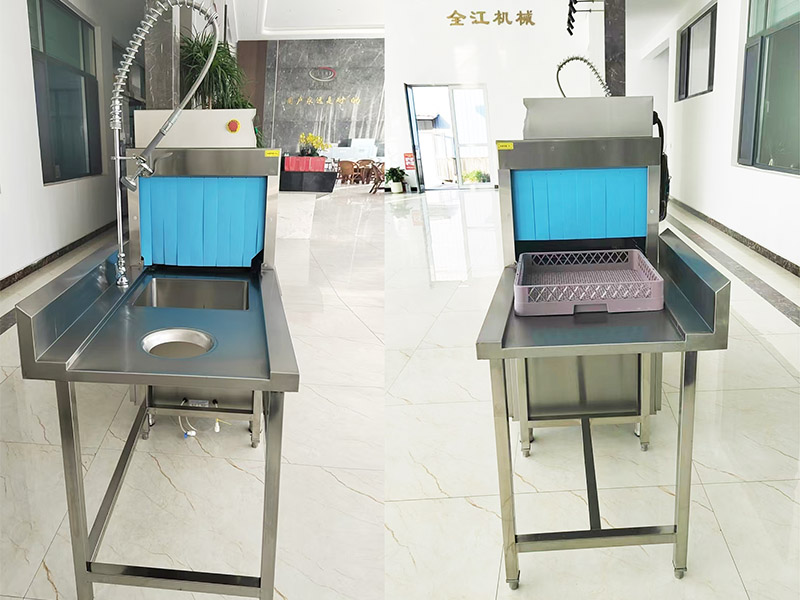

Enlarged Inlet

Wider and taller wash inlet (515×510 mm) allows    dish racks to enter and exit safely.

Fine Filter Screen

3mm diameter filter screen effectively prevents    food debris from entering the machine, reduces internal cleaning needs, and    allows hot water to be efficiently recycled.

Inlet Water Filtration

Inlet uses high-quality brass one-way filter valve    to isolate impurities in the water, ensuring safety.

High-Pressure Spray System

Scientifically designed nozzles provide all-around    water coverage, leaving no dead spots. Pumps use well-known domestic brands,    enhancing the equipment.

Transmission System

All components use heavy-duty 304 material,    ensuring equipment longevity. All parts are self-developed, efficient, and    energy-saving. The conveyor motor also uses a well-known domestic brand,    providing permanent power.

Modular Design

Carefully engineered by designers, using precision    laser cutting technology, achieving a rational assembled structure. Solves    the problem of narrow kitchen entrances in modern cities, making installation    easier and saving time. Avoids kitchen modifications needed for overly large    equipment.

Water Saving

Equipment features circulating water design with    fine filters, ensuring clear water for improved cleaning and achieving water    conservation.

Packaging

First layer: Stretch film wrap. Second layer: Air    cushion film protection. Third layer: Solid wood frame protection. Ensures    safe delivery of our equipment.
