Ultrasound propagates in liquid, causing the liquid and the cleaning tank to vibrate together at the ultrasonic frequency. The liquid and the cleaning tank have their own natural frequency during vibration, which is the acoustic frequency, hence the buzzing sound is heard.

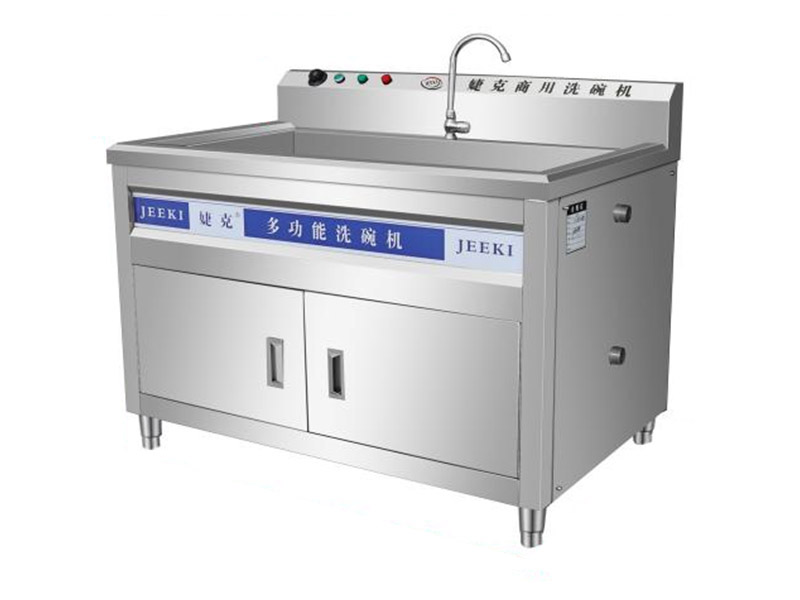

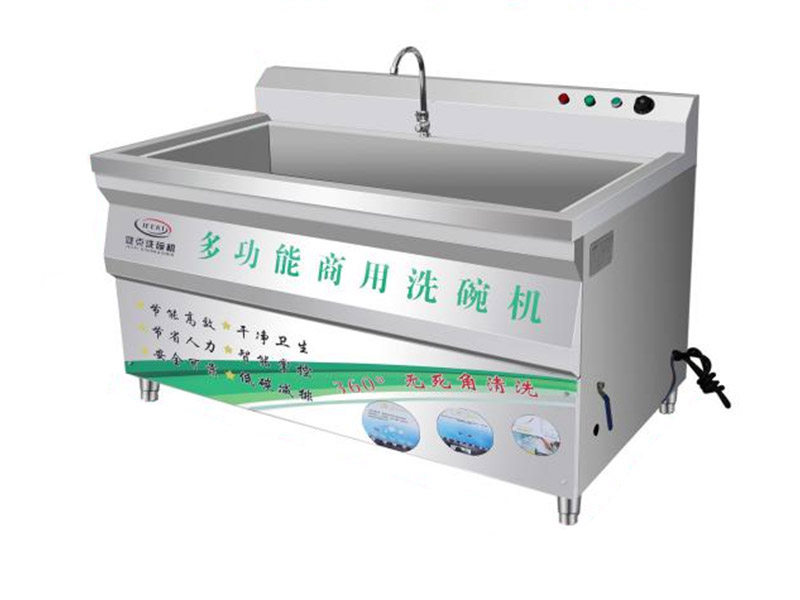

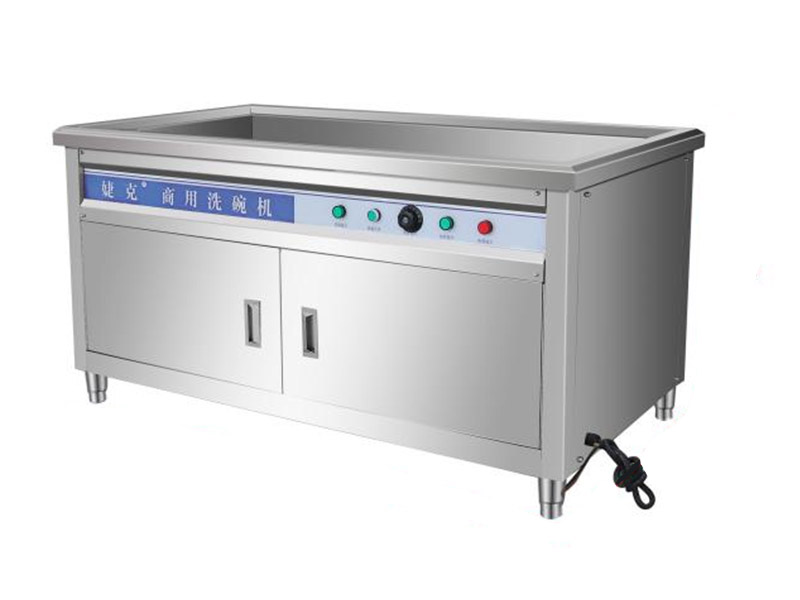

JEEKI ULTRASONIC DISHWASHER
Product Introduction:
Ultrasound propagates in liquid,causing the liquid and the cleaning tank to vibrate together at the ultrasonic frequency.The liquid and the cleaning tank have their own natural frequency during vibration,which is the acoustic frequency,hence the buzzing sound is heard.
The advantages of ultrasonic cleaners are:effective ultrasonic cleaning and simple operation.
Ultrasonic Dishwasher Features:
1.Cleaning and Degreasing:The ultrasonic dishwasher performs cleaning,degreasing and other functions.
2.360°Comprehensive Cleaning:Especially suitable for cleaning Chinese tableware.Chinese cuisine is greasy and bowls are deep,making it difficult for ordinary dishwashers to clean effectively.Ultrasonic vibration reaches inside deep bowls,leaving no dead corners.
3.Effective for Complex Surfaces:Particularly effective for irregular large areas,narrow gaps,fine holes,grooves and similar surface requirements.
4.No Special Detergent Needed:Traditional dishwashers rely on chemical detergents,while ultrasonic dishwashers can operate without detergent. Adding dishwashing liquid speeds up degreasing.
5.Low Consumption:Reduced water consumption and power consumption.Uses water or organic solvents instead of traditional cleaners,lowering costs.
6.Durable Structure:Simple structure with long service life.Unique ultrasonic conversion circuit and high-quality transducers ensure stability and longevity.
7.Hygienic Stainless Steel:Fully constructed from stainless steel plates, complying with hygiene standards.
8.Sterilization Function:Utilizes ultrasonic intensity,frequency and duration to combat typhoid bacillus,staphylococcus,streptococci and E.coli.
9.Intelligent Protection:Features frequency-sweeping generator with digital display.Automatic shutdown with fault codes for over-voltage,over-current and over-temperature protection.
SPECIFICATIONS:
Model | Dimensions（MM） | Voltage | PowerKW | Tank Capacity | Cleaning Capacity |
JK-C60A | 600*600*800（Standand）/150 | 220v | 5kw | 80L | 600+pieces/h |
JK-C80A | 800*800*800（Standand）/150 | 220v | 5kw | 100L | 800+pieces/h |
JK-C100A | 1000*800*800（Standand）/150 | 220v | 5.5kw | 200L | 1000+pieces/h |
JK-C120A | 1200*800*800（Standand/150 | 220v | 6kw | 220L | 1200+pieces/h |
JK-C150A | 1500*800*800（Standand）/150 | 220v | 6kw | 240L | 1600+pieces/h |
JK-C180A | 1800*800*800（Standand）/150 | 220v | 9-12KW | 290L | 2000+pieces/h |
JK-C200A | 2000*800*800（Standand）/150 | 220v | 9-12KW | 300L | 2500+pieces/h |
Note:Custom sizes available upon request.
Installation requires 63A leakage protector and 4mm²national standard copper core cable.
Important:Add water before powering on,and power off before draining to prevent heating element dry burning.
